How to configure Q-in-Q Tunneling in Cisco

Q-in-Q Tunneling is to allow service providers or hosting provider or data center, 4096 VLAN inside of each one of 4096 VLAN. This is really useful and easy to implement. Before going to the configuration part, let’s discuss the benefits of q-in-q tunnel.

Service providers often meet the requirement for specific VLAN IDs and the number of VLANs to be supported from the customer end. Those VLAN IDs might overlap and they also need to segregate from other customers. Q-in-Q helps to solve this problem.

Advertisements

It provides point-to-point or point-to-multipoint L2 tunnel.

When q-in-q will be configured, there will no new configuration from the service provider end. Customer need to configure on their end only for future changes. So, data connectivity will look like dark fiber to the customers.

Q-in-Q Tunneling configuration in Cisco Catalyst

Configuration of Q-in-Q tunnelling in Cisco is very simple. First let’s configure ISP inside links. We need to make sure, our mtu is enough to add extra tag for Q-in-Q tunnel.

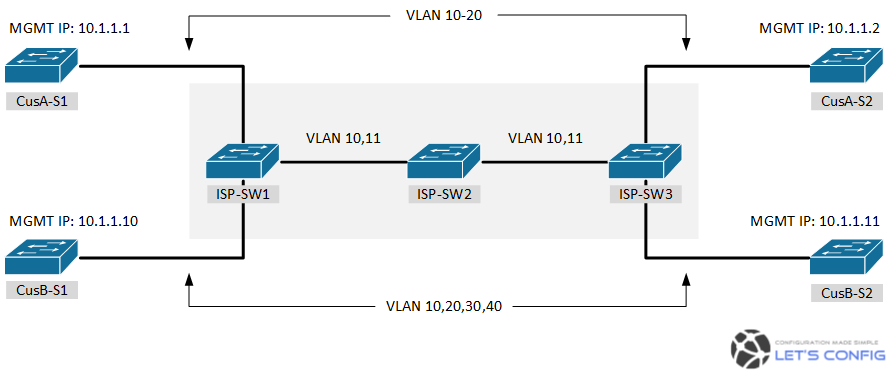

We will follow below diagram for our LAB. So, let’s get started.

Advertisements

Diagram

How to configure Q-in-Q Tunneling in Cisco IOS

Our VLAN mapping from ISP end is below-

  • CusA – VLAN 10
  • CusB – VLAN 11

VLAN mapping from Customer end is below-

  • CusA – VLAN 10,11,12,13,14,15,16,17,18,19,20
  • CusB – VLAN 10,20,30,40
ISP-SW1

configure terminal
 vlan 10,11

interface GigabitEthernet0/2
 description ***Connected to ISP-SW2***
 switchport trunk encapsulation dot1q
 switchport mode trunk
 switchport trunk allowed vlan 10,11
 mtu 1504
ISP-SW2

configure terminal
 vlan 10,11

interface GigabitEthernet0/2
 description ***Connected to ISP-SW1***
 switchport trunk encapsulation dot1q
 switchport mode trunk
 switchport trunk allowed vlan 10,11
 mtu 1504

interface GigabitEthernet0/3
 description ***Connected to ISP-SW3***
 switchport trunk encapsulation dot1q
 switchport mode trunk
 switchport trunk allowed vlan 10,11
 mtu 1504
ISP-SW3

configure terminal
 vlan 10,11

interface GigabitEthernet0/3
 description ***Connected to ISP-SW2***
 switchport trunk encapsulation dot1q
 switchport mode trunk
 switchport trunk allowed vlan 10,11
 mtu 1504

Now, we will configure customer facing interfaces. Here we will enable 802.1Q tag by using “switchport mode dot1q-tunnel” command. Below we are configuring access vlan 10 for CusA and vlan 11 for CusB.

ISP-SW1

interface GigabitEthernet0/0
 description ***Connected to CusA-S1***
 switchport mode dot1q-tunnel
 switchport access vlan 10

interface GigabitEthernet0/1
 description ***Connected to CusB-S1***
 switchport mode dot1q-tunnel
 switchport access vlan 11

From ISP-SW3, we will do the similar configuration for Customer’s 2nd site (CusA-S2 and CusB-S2).

ISP-SW3

interface GigabitEthernet0/0
 description ***Connected to CusA-S2***
 switchport mode dot1q-tunnel
 switchport access vlan 10

interface GigabitEthernet0/1
 description ***Connected to CusB-S2***
 switchport mode dot1q-tunnel
 switchport access vlan 11

So, we have done with ISP end configuration. Now, we will configure customer end. It’s plain VLAN configuration and customer have full control to forward VLAN through this tunnel.

Below are the configuration of Customer A (CusA).

CusA-S1

configure terminal
 vlan 10-20

interface GigabitEthernet0/0
 description ***Connected to ISP-SW1***
 switchport trunk encapsulation dot1q
 switchport mode trunk
 switchport trunk allowed vlan 10-20

interface vlan 10
 description ***MGMT VLAN***
 ip add 10.1.1.1 255.255.255.0

CusA-S2

configure terminal
 vlan 10-20

interface GigabitEthernet0/0
 description ***Connected to ISP-SW3***
 switchport trunk encapsulation dot1q
 switchport mode trunk
 switchport trunk allowed vlan 10-20

interface vlan 10
 description ***MGMT VLAN***
 ip add 10.1.1.2 255.255.255.0

In next section, we will configure site for Customer B (CusB). To make a point, we have configured VLAN 10 in Customer B network as well along with 10.1.1.0/24 IP for MGMT just like below.

Advertisements
CusB-S1

configure terminal
 vlan 10,20,30,40

interface GigabitEthernet0/0
 description ***Connected to ISP-SW1***
 switchport trunk encapsulation dot1q
 switchport mode trunk
 switchport trunk allowed vlan 10,20,30,40

interface vlan 10
 description ***MGMT VLAN***
 ip add 10.1.1.10 255.255.255.0

CusB-S2

configure terminal
 vlan 10,20,30,40

interface GigabitEthernet0/0
 description ***Connected to ISP-SW3***
 switchport trunk encapsulation dot1q
 switchport mode trunk
 switchport trunk allowed vlan 10,20,30,40

interface vlan 10
 description ***MGMT VLAN***
 ip add 10.1.1.20 255.255.255.0

Useful commands:
Below are few useful command to add in Q-in-Q tunneling.

l2protocol-tunnel cdp
l2protocol-tunnel stp
l2protocol-tunnel vtp

Verification

Very first command will be show dot1q-tunnel from ISP edge switch.

ISP-SW1#show dot1q-tunnel

dot1q-tunnel mode LAN Port(s)
-----------------------------
Gi0/0
Gi0/1

It’s clearly showing we have Q-in-Q tunnel configuration in Gi0/0 and Gi0/1 interface.

Now, if our configuration is OK, then we will be able to see from CusA-S1 to CusA-S2 as a connected next-hop.

CusA-S1#show cdp neighbors
Capability Codes: R - Router, T - Trans Bridge, B - Source Route Bridge
                  S - Switch, H - Host, I - IGMP, r - Repeater, P - Phone,
                  D - Remote, C - CVTA, M - Two-port Mac Relay

Device ID        Local Intrfce     Holdtme    Capability  Platform  Port ID
CusA-S2          Gig 0/0           169             R S I            Gig 0/0

Total cdp entries displayed : 1

Same goes for CusB-S1 to CusB-S2.

CusB-S1#show cdp neighbors
Capability Codes: R - Router, T - Trans Bridge, B - Source Route Bridge
                  S - Switch, H - Host, I - IGMP, r - Repeater, P - Phone,
                  D - Remote, C - CVTA, M - Two-port Mac Relay

Device ID        Local Intrfce     Holdtme    Capability  Platform  Port ID
ISP-SW1          Gig 0/1           156             R S I            Gig 0/1

Total cdp entries displayed : 1

We will be able to ping Site-2 from Site-1 for Customer A but will not be able to ping to CusB-S1 and CusB-S2 due to they are in different tunnel.

CusA-S1#ping 1.1.1.2
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 1.1.1.2, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 19/40/76 ms
CusA-S1#
CusA-S1#
CusA-S1#ping 1.1.1.10
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 1.1.1.10, timeout is 2 seconds:
.....
Success rate is 0 percent (0/5)
CusA-S1#

If you enjoyed. For more information, you can use cisco.com configuration guide as reference.
